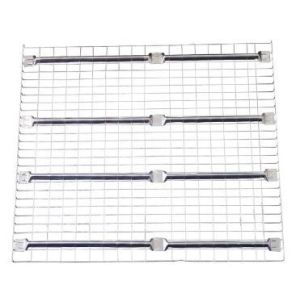

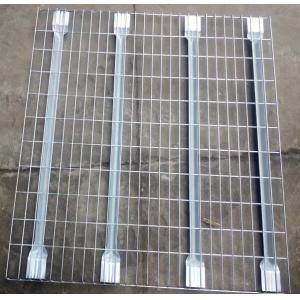

Galvanized Flared Shape Mesh Decking Panels Euro Style for Heavy
Racking
Specification for Galvanized Flared Shape Mesh Decking Panels Euro Style for Heavy
Racking
Wire mesh decking is commonly used as a safety measure on selective
pallet rack to prevent pallets or the products stored on them from
falling through the rack structure. Flared wire decking is designed
to use on beams without insert ot step, mainly used on box beam;
welded with U channels under wire decking to ensure the load
capacity.
How to select the right dimension? Please just contact us to get
further infos
Advantages of Flared Channel Style
1. Wire mesh structure allows easy identification of goods and
prevents dirt from accumulating on the shelving.
2. Effect solution to enhance the versatility and safety of storage
racking.
3. Meet fireproof requirement and can also helpe to reduce the
insurance rates.
4. Durable, light in weight, easy to handle and maintain, widely
used in American, European, Australia market.
Optional Dimension
Inch | Wire grid | Mesh Size |
Channel(pcs) | Flared Channel Thickness | Load Capacity |
mm | inch | mm | Lbs |
36”*46” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
42”*46” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
44”*46” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
48”*46” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
36”*52” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
42”*52” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
44”*52” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
48”*52” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
24”*52” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
24”*46” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
24”*58” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
36”*58” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
42”*58” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
44”*58” | 4.8-5.5 | 2.5*4.5/2*4 | 3 | 1.8-2 | 2500 |
